Varafine filters are well suited for ultra high purity DI water applications where very fine removal ratings and extremely high flow rates are required for economical installations. These filters contain a highly asymmetric polysulfone membrane that results in exceptionally low pressure drop values.
- Available in removal ratings from 0.02 μm to 0.45 μm
- Double layer, patented highly asymmetric polysulfone membrane
- Rapid rinse-up
- Integrity testable
- Manufactured in cleanroom environment
规格
Materials
- Medium: hydrophilic asymmetric polysulfone
- Core, cage and endcaps: polypropylene
- Support and drainage: polypropylene
- Sealing method: thermal bond
- O-ring/gasket: silicone elastomer (standard)
Removal Ratings
- 0.02 μm, 0.1 μm, 0.2 μm, 0.45 μm
Configurations
- Nominal length:
- 102 mm/4 in.
- 254 mm/10 in.
- 508 mm/20 in.
- 762 mm/30 in.
- 1016 mm/40 in.
- Diameter: 66 mm/2.6 in.
- O-ring size/end caps:
- Code M3 (222 double O-rings/flat end)
- Code M8 (222 double O-rings/finned end)
- Code M7 (226 double O-ring/bayonet lock/finned end)
Operating Conditions
- Maximum operating temperature: 30 °C / 86 °F (70 °C / 158 °F)1
- Maximum forward differential pressure:
- 0.5 MPa @ 20 °C / 80 psid @ 68 °F
- 0.14 MPa @ 70 °C / 20 psid @ 158 °F
Integrity Test Values2
Per 254 mm / 10 in segment- 0.02 μm <30 cm3/min @ 50 psig / 0.34 MPa
- 0.1 μm <24 cm3/min @ 25 psig / 0.17 MPa
- 0.2 μm <20 cm3/min @ 20 psig / 0.14 MPa bar
- 0.45 μm <15 cm3/min @ 15 psig / 0.1 MPa
2 Test fluid used is 100% H2O.
性能

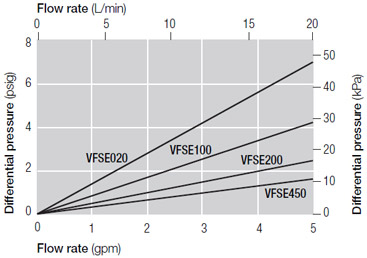

Pressure Drop vs. Liquid Flow Rate
Varafine VFSE Filter Cartridges
类型
Filter Cartridges
应用
Ultrapure water
订购信息
This information is a guide to the part number structure and possible options. For availability of specific options and housing details, please contact Pall.
Example Part Number: VFSE 100 30 M7 T ( See bold references in tables below)
Part Number:
VTSE < Removal Rating Code from Table 1 > < Nominal Length Code from Table 2> < Cartridge End Configuration Code from Table 3 > < O-ring Material Code from Table 4 >
Unit conversion: 1 bar = 100 kilopascals
Example Part Number: VFSE 100 30 M7 T ( See bold references in tables below)
Part Number:
VTSE < Removal Rating Code from Table 1 > < Nominal Length Code from Table 2> < Cartridge End Configuration Code from Table 3 > < O-ring Material Code from Table 4 >
Table 1 - Removal Rating (µm)
| Code | Removal Rating (μm) |
| 020 | 0.02 |
| 100 | 0.1 |
| 200 | 0.2 |
| 450 | 0.45 |
Table 2 - Nominal Length (in / mm)
| Code | Nominal Length (in / mm) |
| 4 | 102/4 |
| 10 | 254/10 |
| 20 | 508/20 |
| 30 | 762/30 |
| 40 | 1016/40 |
Table 3 - Cartridge End Configuration
| Code | Cartridge End Configuration |
| M3 | SOE flat closed end, 222 O-rings |
| M7 | SOE fin end, 226 O-rings |
| M8 | SOE fin end, 222 O-rings |
| DOE | Double open end |
Table 4 - O-ring Material
| Code | O-ring Material |
| S | Silicone |
| E | EPDM |
| V | Viton3 A |
| T | Teflon3 encapsulated silicone |
| F | Teflon encapsulated Viton A |
3 Viton and Teflon are trademarks of E. I. du Pont de Nemours and Company.
Unit conversion: 1 bar = 100 kilopascals
