The UltiKleen G2 filter is an advanced all fluoro-polymer cartridge designed specifically for use in critical chemical filtration. The filter uses a pure unmodified PTFE membrane with guaranteed levels of metal ion extractable and particle cleanliness.
The patented Ultipleat® filter design maximizes filter area to provide high flow capacity in a compact filter size. The large filter area ensures long service life.
The patented Ultipleat® filter design maximizes filter area to provide high flow capacity in a compact filter size. The large filter area ensures long service life.
Features & Benefits
- All fluoro-polymer construction
- Suitable for aggressive high temperature chemicals
- Optimized Ultipleat construction
- Increased flow and long life improves COO
- Low extractables
- Maintains chemical purity and can shorten qualification time
- Pre-wet option
- Eliminates need for pre-wetting for safer and faster changes
- 100 % integrity tested
- Assures product performance for every filter
- Multiple removal ratings and lengths
- Provides options for different flow rate and particle removal needs
Materials of Construction1
| Components | Materials |
| Filter Medium | PTFE |
| Media Support | PTFE |
| Core | PFA |
| Cage | PFA |
| End Caps | PFA |
| Sealing methods | Heat Melt Seal |
| O-ring | FEP encapsulated fluoroelastomer |
1All Fluoropolymer materials made without PFOA.
Removal Ratings and Operating Conditions
| Removal Ratings | 0.2 μm, 0.1 μm, 0.05 μm | ||
| Configurations | AB1 | AB2 | AB3 |
| Filter Areas | 2.2 m2 / 23.7 ft2 | 4.4 m2 / 47.4 ft2 | 6.6 m2 / 71.0 ft2 |
| Nominal Length | 254 mm / 10 in | 508 mm / 20 in | 762 mm / 30 in |
| Maximum Operating Temperature | 170 °C / 338 °F | ||
| Maximum Forward Differential Pressure | 0.59 MPa < 50 °C / 86 psid < 122 °F | ||

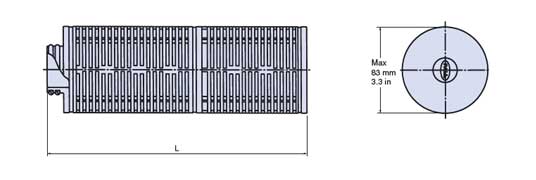

Dimensions
Typical Flow Characteristics - 1cP fluid, 20℃
Filter Cartridges
Chemicals
ABFG [1] UCF [2] L3EH1 [3]
Table 1
| Code | Cartridge Length | ||
| Nominal | L | ||
| 1 | 10 | 244 mm / 9.6 in | |
| 2 | 20 | 487 mm / 19.2 in | |
| 3 | 30 | 726 mm / 28.6 in | |
Table 2
| Code | Removal Ratings |
| D | 0.05 μm |
| T | 0.1 μm |
| R | 0.2 μm |
Table 3
| Code | Prewet Option |
| -K3 | Prewet filter (packaged in DI water) |
| -K7 | Prewet filter (packaged in DI water), Low metal extractables 3 |
2Please contact Pall on the extractable onditions.
3Part numbers in conbination with all codes are not always availbale. Please contact Pall for the part number availability.
Semiconductor
